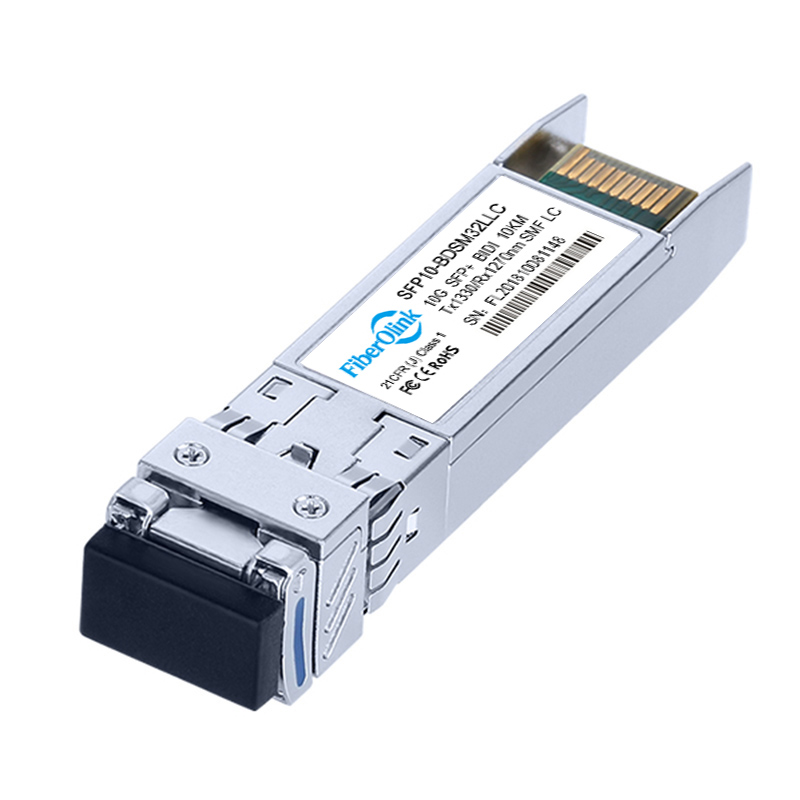

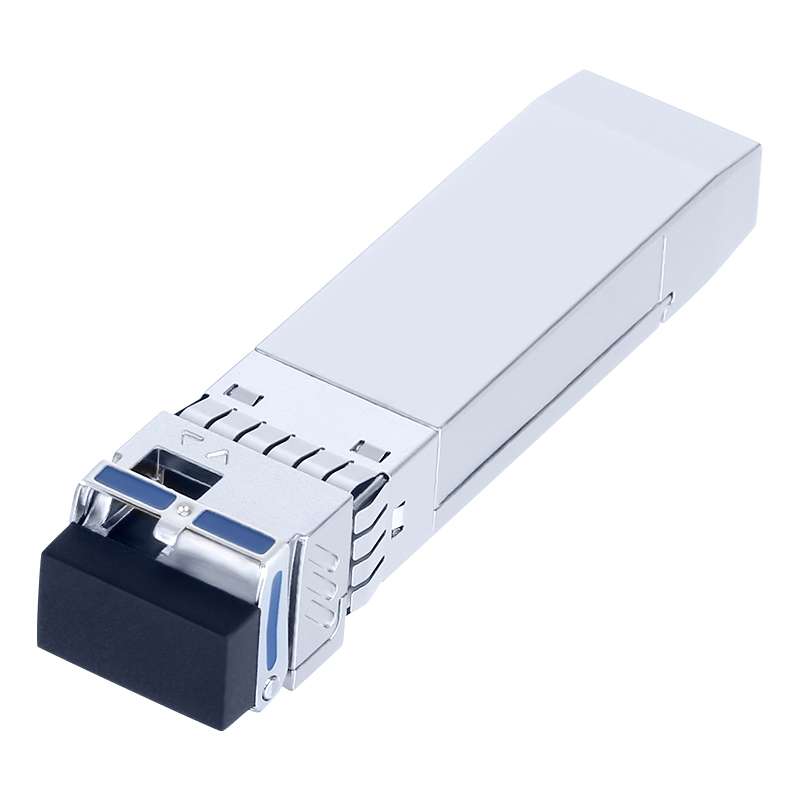

10G BIDI SFP+ LR 1330Tx 1270Rx 10km
- Utilizes hot-swappable SFP+ package simplex transceiver module
- 1330nm DFB transmitter and PIN receiver
- Compliant with IEEE 802.3z, SFF-8472, and SFP+ MSA Ethernet standards
- Maximum power consumption less than 1.5W
- Built-in Digital Diagnostic Monitoring (DDM)
- Power supply voltage 3.3V
- Compliant with RoHS environmental standards (lead-free)
- Class 1/1M specification products, compliant with IEC60825-1 requirements
- Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
- Meets EMI and ESD requirements
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | SFP-10G-BIDI-10 | Vendor Name | Fiberolink |
| Form Factor | SFP+ | Data Rate | 10.3125Gbps |
| Wavelength | TX-1330nm/RX-1270nm | Distance | 10km |
| Connector | LC Simplex | Cable Type | SMF |
| Transmitter Type | DFB | Detector Types | PIN |
| TX Power | -6~-1dBm | Receiver Sensitivity | < -14.4dBm |
| Power Consumption | ≤1.5W | Operation Temperature | 0~70°C |
| DDM | Support | EMC | Support |
| Protocols | IEEE 802.3z, SFF-8472, SFP+ MSA, CPRI, eCPRI | ||
Q、Comparison: SFP-10G-SR vs SFP-10G-LR vs SFP-10G-LRM
A、Let’s compare their differences and similarities, which will assist you in selecting the appropriate 10G SFP+ module based on your specific application needs.
| SFP-10G-SR | SFP-10G-LR | SFP-10G-LRM | |
|---|---|---|---|
| Package Type | SFP+ | SFP+ | SFP+ |
| Rate | 10 Gbps | 10 Gbps | 10 Gbps |
| Wavelength | 850nm | 1310nm | 1310nm |
| Max. Distance | 300m/400m | 10km | 220m/300m |
| Interface | LC duplex | LC duplex | LC duplex |
| Laser Type | VCSEL 850nm | DFB 1310nm | FP 1310nm |
| Fiber Optic Type | MMF | SMF | SMF/MMF |
| DOM | YES | YES | YES |
| Transmitted Light Power | -7.3～-1dBm | -8.2～0.5dBm | -6.5~-0.5dBm |
| Received Sensibility | < -11.1dBm | < -14.4dBm | < -8.4dBm |
| Commercial Temperature | 0～ 70°C (32 ～ 158°F) | 0～ 70°C (32 ～ 158°F) | 0～ 70°C (32 ～ 158°F) |
| Application Range | Only used for short distance connections | Only used for long distance connections | Only used for short distance connections |
Q、Advantages of SFP+ Optical Modules
A、1. SFP+ features a more compact form factor compared to X2 and similar packages, maintaining the same size as SFP; 2. It is directly compatible and can be interconnected with similar types like XFP, X2, and XENPAK; 3. It comes at a lower cost compared to XFP, X2, and XENPAK products.
Q、Differences and Connections Between SFP+ and SFP
A、(1) Differences:
Protocol Specifications: SFP adheres to IEEE802.3 and SFF-8472 standards, whereas SFP+ follows IEEE 802.3ae, SFF-8431, and SFF-8432 standards;
SFP+ represents a more prevalent and advanced design in the industry.
(2) Connections:
Both SFP and SFP+ share the same physical dimensions and form factor;
SFP+ and XFP, while both are 10G fiber modules, demonstrate interoperability with other types, highlighting the versatility in high-speed data transmission solutions.
