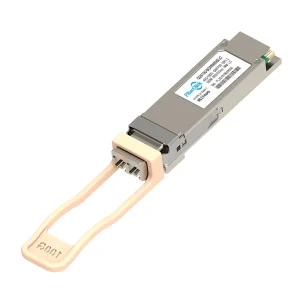

100G QSFP28 ZR4 BiDi Tx1310nm/Rx1270nm 80km Simplex LC/UPC SMF transceivers
- Hot-pluggable QSFP28 Form Factor
- Up to 80km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 5.5W
- 4x 25.78G-NRZ Electrical to 4x 25.78G-NRZ Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP28 MSA,IEEE 802.3bm,SFF8636
- RoHS, and Class 1M Laser Safety
- Data center,Ethernet switches and router applications.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | Q28100-BDSML32ZLC | Form Factor | QSFP28 |
| Max Data Rate | 103Gbps (4x 25.78Gbps) | Connector | Simplex LC/UPC |
| Wavelength | TxLWDM4(1295.56~1309.14nm)/ RxLWDM4(1273.54~1286.66nm) | Distance | 80km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | SOA+PIN |
| TX Power | 2~6.5dBm | Receiver Sensitivity | ＜-28dBm @BER<5E-5 |
| Extinction Ratio | ＞7dB | Receiver Overload | -6dBm |
| Max. Power Consumption | ≤5.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 4x25G-NRZ | Modulation (Optical) | 4x25G-NRZ |
| Protocols | QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4 | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |

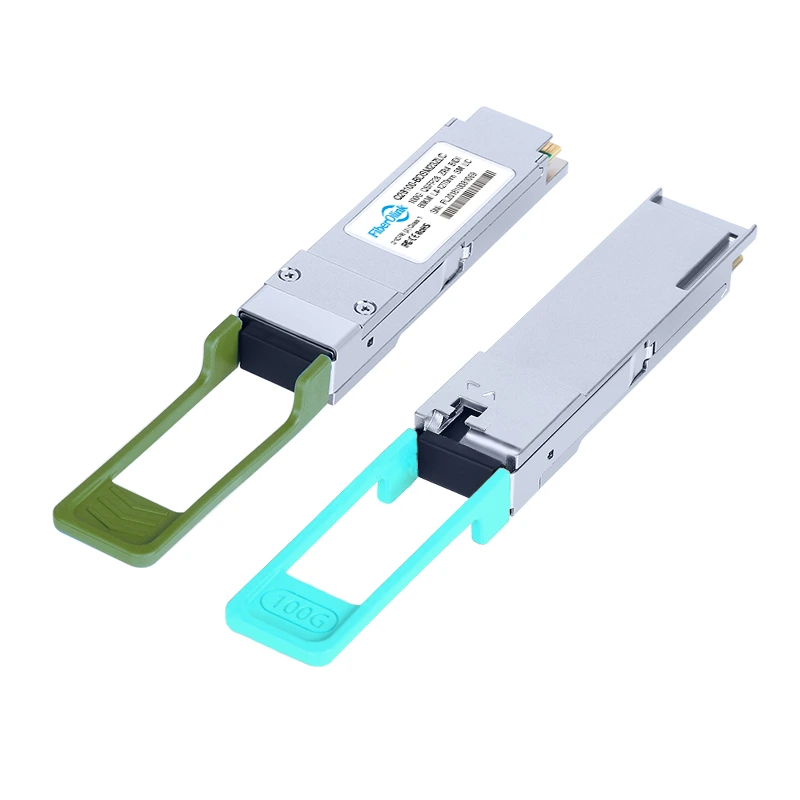

| Q28100-BUSML23ZLC | QSFP28 100G ZR4 BiDi Tx1270nm/Rx1310nm SMF | 103Gbps (4x 25.78Gbps) | 80km | Tx1270nmL4/Rx1310nmL4 | Simplex LC/UPC |  DateSheet |
|
| Q28100-BDSML32ZLC | QSFP28 100G ZR4 BiDi Tx1310nm/Rx1270nm SMF | 103Gbps (4x 25.78Gbps) | 80km | Tx1310nmL4/Rx1270nmL4 | Simplex LC/UPC | DateSheet |
|
| Q28100-BUSML23WLC | QSFP28 100G eZR4 BiDi Tx1270nm/Rx1310nm SMF | 103Gbps (4x 25.78Gbps) | 100km | Tx1270nmL4/Rx1310nmL4 | Simplex LC/UPC | DateSheet |
|
| Q28100-BDSML32WLC | QSFP28 100G eZR4 BiDi Tx1310nm/Rx1270nm SMF | 103Gbps (4x 25.78Gbps) | 100km | Tx1310nmL4/Rx1270nmL4 | Simplex LC/UPC | DateSheet |
|
| Q28100-BUSM23LLC | QSFP28 100G LR BiDi Tx1270nm/Rx1330nm SMF | 106.25Gbps | 10km | Tx1270nm/Rx1330nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BDSM32LLC | QSFP28 100G LR BiDi Tx1330nm/Rx1270nm SMF | 106.25Gbps | 10km | Tx1330nm/Rx1270nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BUSM23TLC | QSFP28 100G LH BiDi Tx1290nm/Rx1310nm SMF | 106.25Gbps | 20km | Tx1290nm/Rx1310nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BDSM32TLC | QSFP28 100G LH BiDi Tx1310nm/Rx1290nm SMF | 106.25Gbps | 20km | Tx1310nm/Rx1290nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BUSM49ELLC | QSFP28 100G ERL BiDi Tx1304nm/Rx1309nm SMF | 106.25Gbps | 30km | Tx1304.58nm/Rx1309.14nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BDSM94ELLC | QSFP28 100G ERL BiDi Tx1309nm/Rx1304nm SMF | 106.25Gbps | 30km | Tx1309.14nm/Rx1304.58nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BUSM49ELC | QSFP28 100G ER BiDi Tx1304nm/Rx1309nm SMF | 106.25Gbps | 40km | Tx1304.58nm/Rx1309.14nm | Simplex LC/UPC | DateSheet |
|
| Q28100-BDSM94ELC | QSFP28 100G ER BiDi Tx1309nm/Rx1304nm SMF | 106.25Gbps | 40km | Tx1309.14nm/Rx1304.58nm | Simplex LC/UPC | DateSheet |
|
