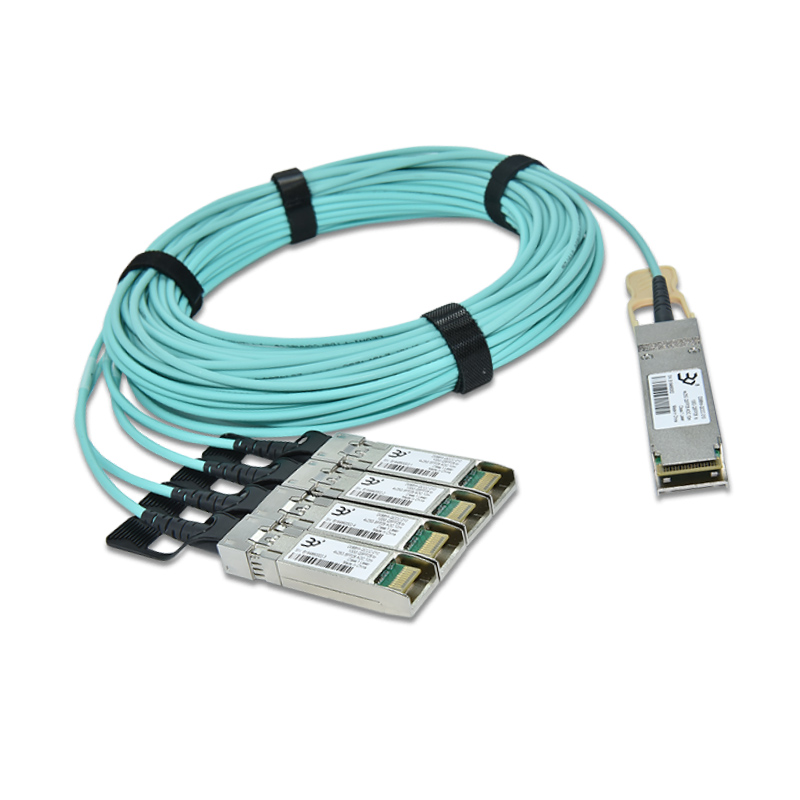

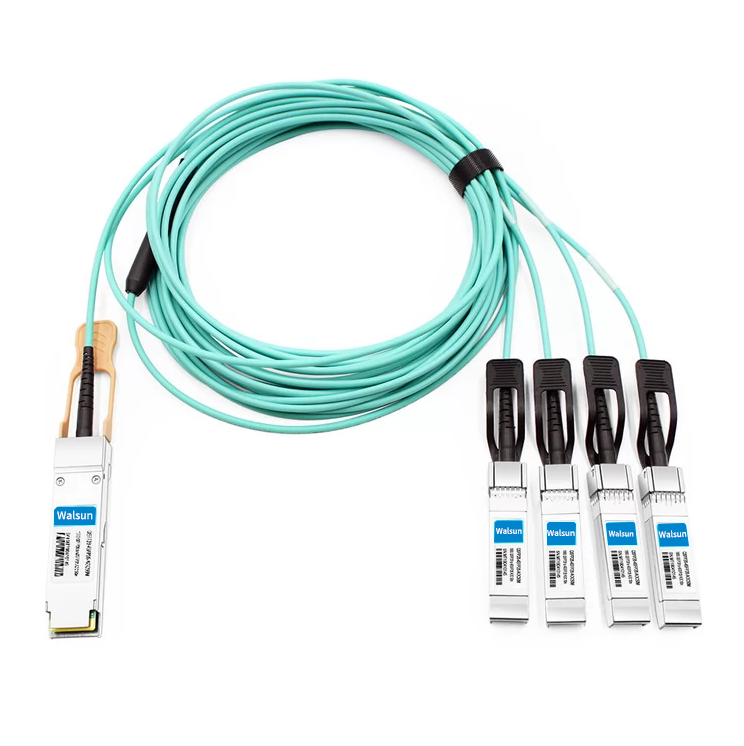

100G QSFP28 to Four 25G SFP28 Active Optical Breakout Cable
100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable operates over Multimode Fiber (MMF). This breakout cable complies with QSFP28 and SFP28 MSA standards. It provides a connection of one 100G QSFP28 port on one end and four 25G SFP28 ports on the other end, suitable for fast and simple connection within a rack and between adjacent racks. It supports 100G/4x25G Ethernet, InfiniBand 4x EDR and CPRI/eCPRI for data center, HPC (High-Performance Computing), and SAN (Storage Area Network) links at distances up to 100m or 300m over OM4 MMF.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP28-4SFP28-AOC50M | Vendor Name | Fiberolink |
| Connector | QSFP28 to 4x SFP28 | Max Data Rate | 100Gbps |
| Cable Length | 50m (164.0ft) | Fiber Cable | OM3 MMF |
| Jacket Material | OFNP | Minimum Bend Radius | 7.5mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 25G/100G Ethernet, InfiniBand QDR |
