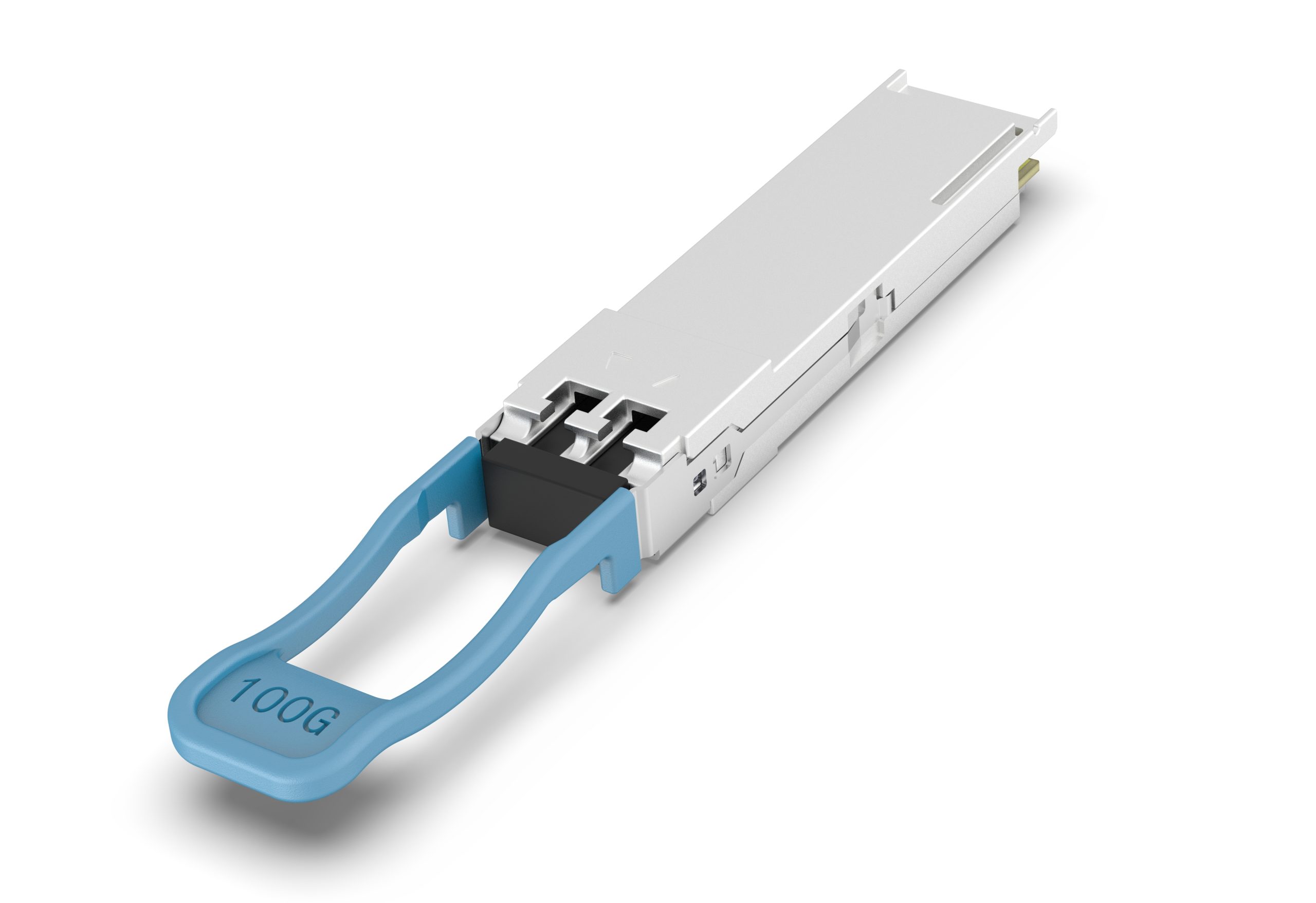

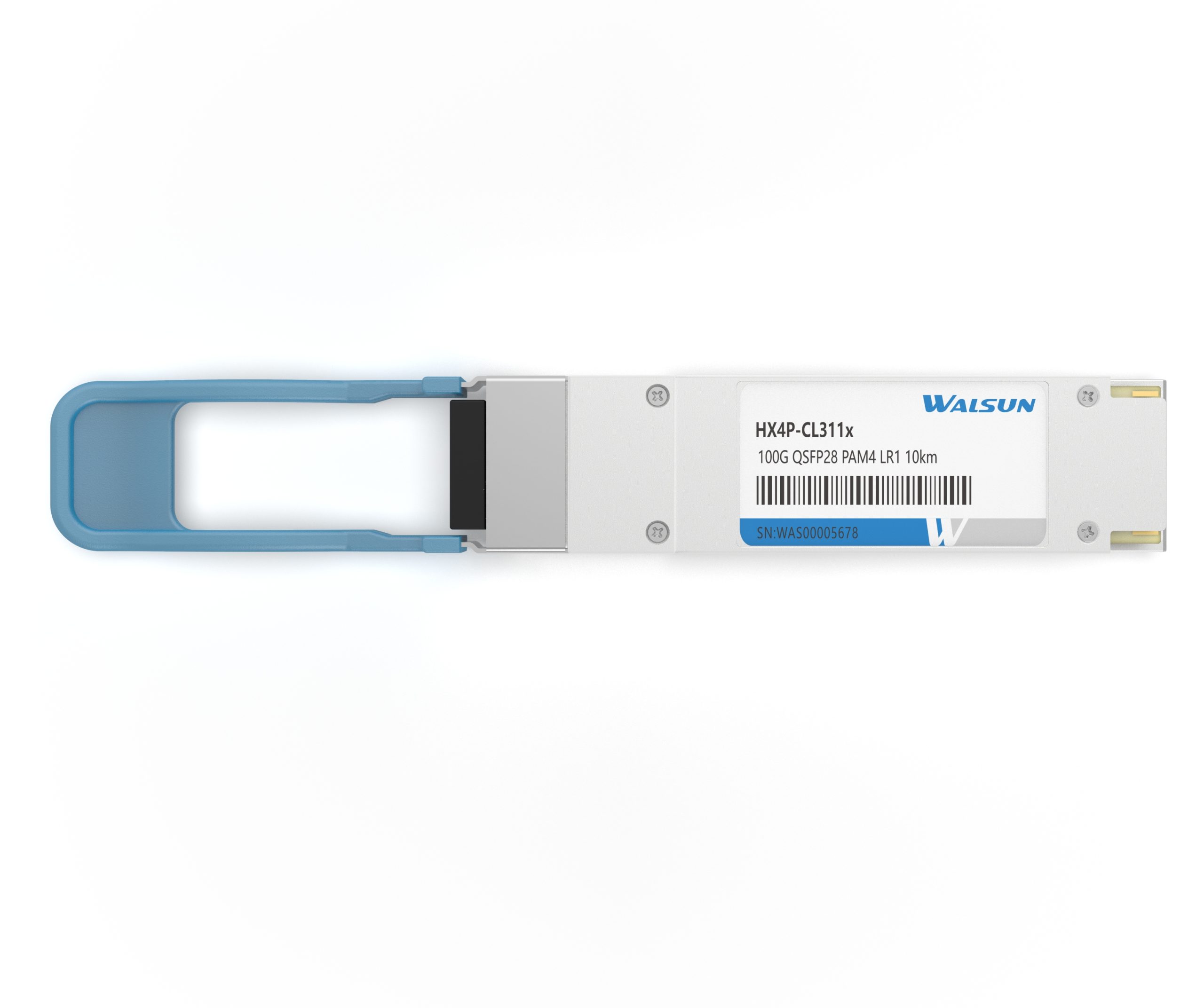

100G QSFP28 PAM4 LR1 1310nm 10km
- Adopts hot-pluggable QSFP28 package
- Full-duplex transceiver module
- DFB transmitter and PIN receiver
- Complies with IEEE 802.3bm, SFF-8636, and QSFP28 MSA Ethernet standards
- Maximum power consumption less than 3.5W
- Built-in Digital Diagnostic Monitoring (DDM)
- Power supply voltage 3.3V
- RoHS compliant (lead-free)
- Class 1/1M product, compliant with IEC60825-1 requirements
- Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
- Meets EMI and ESD requirements
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

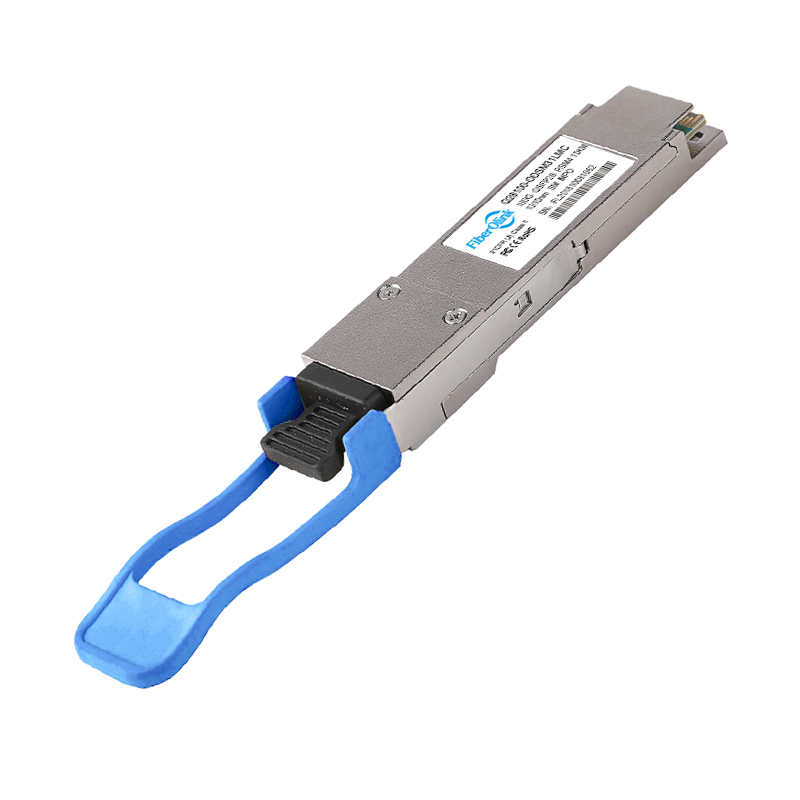

| Product Model | QSFP-100G-PSM4 | Vendor Name | Fiberolink |
| Form Factor | QSFP28 | Data Rate | 103.125Gbps |
| Wavelength | 1310nm | Distance | 2km |
| Connector | MPO/MTP-12 | Cable Type | SMF |
| Transmitter Type | DFB | Detector Types | PIN |
| TX Power | -5.5~2dBm | Receiver Sensitivity | < < -9dBm（BER = 1×10-12）/< -12dBmBER = 5×10-5） |
| Power Consumption | ≤3.5W | Operation Temperature | 0~70°C |
| DDM | Support | EMC | Support |
| Modulation | NRZ | CDR | TX & RX with built-in CDR |
| Protocols | IEEE 802.3bm, SFF-8636, QSFP28 MSA | ||
Q1: How many types of 100G QSFP28 optical modules are there?
A1: Currently, the 100G optical modules available on the market include 100G QSFP28 SR4, 100G QSFP28 PSM4, 100G QSFP28 CWDM4, 100G QSFP28 LR4, 100G QSFP28 ER4, and 100G QSFP28 ZR4. The relevant parameters can be seen in the table below.
| Product Type | Maximum Transmission Distance | Wavelength | Interface Type | Fiber Type |
|---|---|---|---|---|
| 100G QSFP28 SR4 | 150m | 850nm | MPO | Multimode |
| 100G QSFP28 LR4 | 10km | LWDM4 | LC | Single-mode |
| 100G QSFP28 ER4 | 40km | LWDM4 | LC | Single-mode |
| 100G QSFP28 ZR4 | 80km | LWDM4 | LC | Single-mode |
| 100G QSFP28 BIDI 80km | 80km | 1310nm | LC | Single-mode |
| 100G QSFP28 PSM4 | 40km | 1310nm | MPO | Single-mode |
Q: Can QSFP28 SR4 optical modules be used with 100G IB (EDR InfiniBand)?
A: Yes, QSFP28 SR4 optical modules can be used in conjunction with 100G IB (EDR InfiniBand).
Q: Can a QSFP28 SR4 optical module support 4x25G transmission through the “speed force 25gfull” configuration command?
A: Yes, the module can utilize this command on the interface to support 4x25G transmission.
Q: Does the 100G QSFP28 SR4 optical module support OTU (111.8Gbps) or 112G rates?
A: No, the 100G QSFP28 SR4 is a single-rate module, capable of supporting only a 100G rate. CFP LR4, CFPER4, and CFP2 LR4 optical modules are dual-rate, enabling support for both 100G and 112G transmission rates, equipped with 4 DFB lasers, each operating at a speed of 28Gbps per channel.
Q: Does Huanxun Optic offer customization services for QSFP28 SR4 optical modules?
A: Yes, all Huanxun Optic QSFP28 SR4 optical modules provide customization services. Simply provide the compatible brand and model number. Furthermore, we warmly welcome your suggestions and preferences for the customized products to better tailor them to your needs.
100Gbs QSFP28 SR4 150m Transceiver HX4X-CM1M2x
100Gbs QSFP28 LR4 10km Transceiver HX4X-CL311x
100Gbs QSFP28 ER4 Transceiver HX4X-LL341x
100Gbs QSFP28 ZR4 Transceiver HX4X-CL3W1x
100Gbs QSFP28 BIDI 10km Transceiver HX4P-CL688613x
100Gbs QSFP28 BIDI 20km Transceiver HX4P-CL377323I
100Gbs QSFP28 ER1 40km Transceiver HX4P-CL341x
