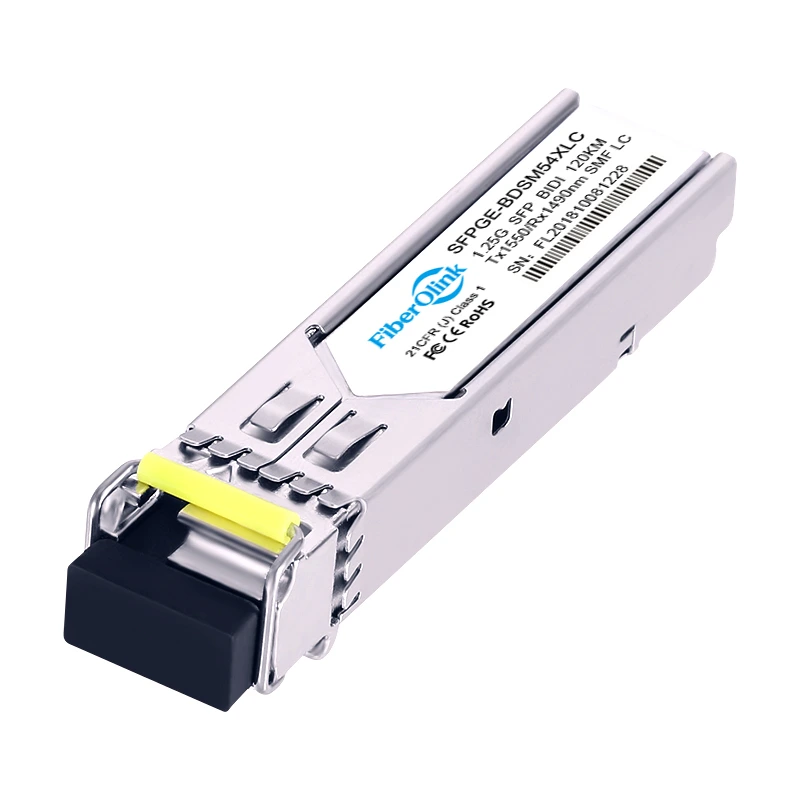

1.25G SFP BiDi Tx1550nm/Rx1490nm 120km Simplex LC/UPC SMF transceivers
- Supports up to 1.25Gbps bit rates
- Hot-pluggable SFP Form Factor
- 1550nm/1490nm DFB laser and APD photodiode, Up to 120km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 1W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP MSA,IEEE 802.3z,SFF-8472
- RoHS, and Class 1M Laser Safety
- Data centers, Security, Power, Transportation and enterprise networks, primarily in devices such as switches, routers, servers and network card.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFPGE-BDSM54XLC | Form Factor | SFP |
| Max Data Rate | 1.25Gbps | Connector | Simplex LC/UPC |
| Wavelength | Tx1550nm/Rx1490nm | Distance | 120km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | DFB | Receiver Type | APD |
| TX Power | 0~5dBm | Receiver Sensitivity | <-31dBm |
| Extinction Ratio | ＞9dB | Receiver Overload | -10dBm |
| Max. Power Consumption | ≤1W | DDM/DOM | Supported |
| Protocols | SFP MSA,IEEE 802.3z,SFF-8472. | ||
