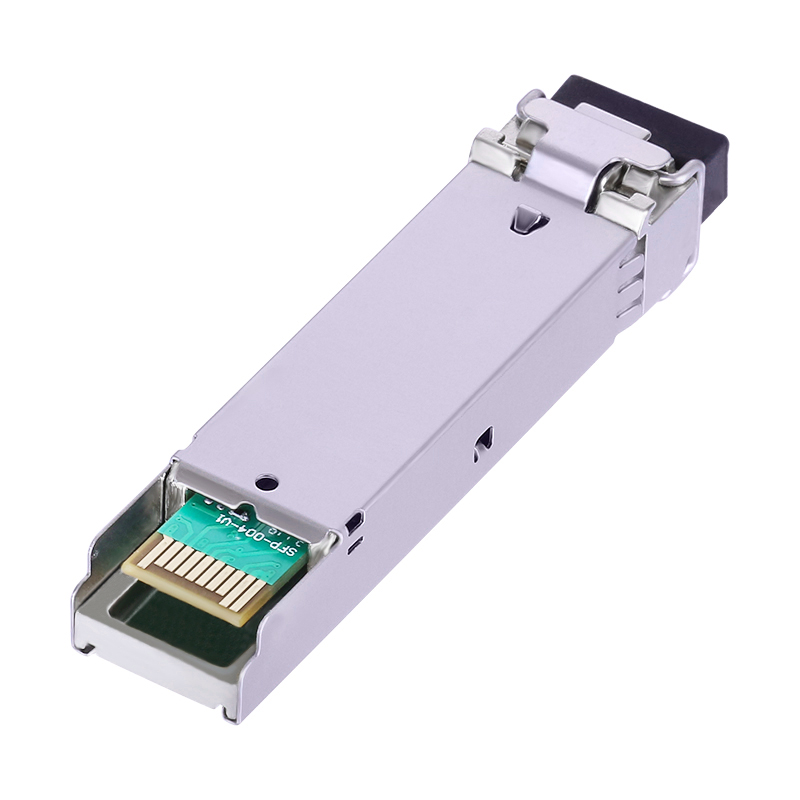

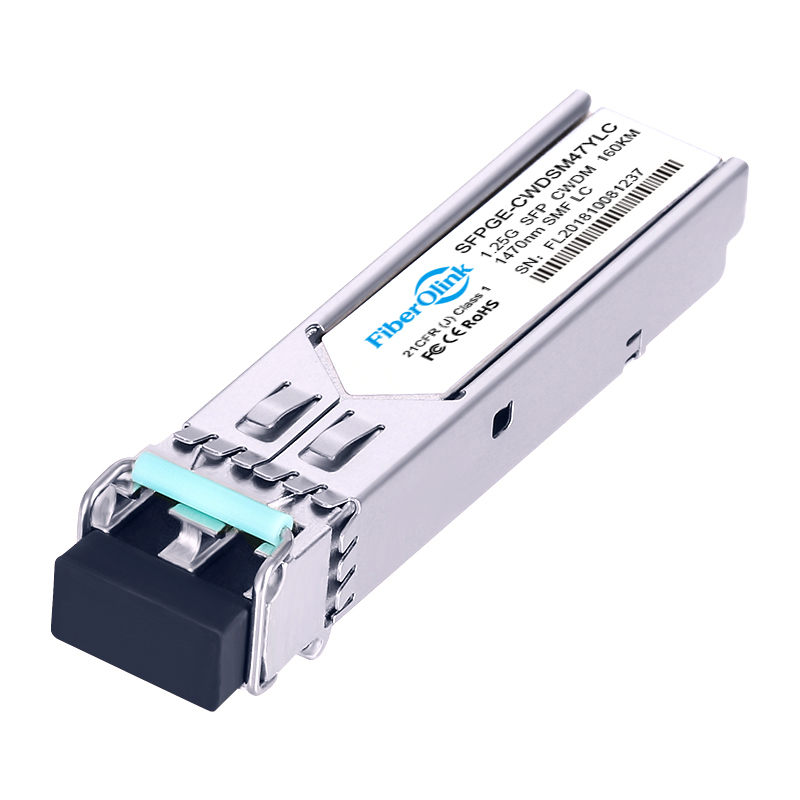

1.25G CWDM SFP 160km
- Utilizes hot-swappable SFP packaging Full-duplex transceiver module
- CWDM DFB transmitter and APD receiver
- Compliant with IEEE 802.3z, SFF-8472, and SFP MSA Ethernet standards
- Maximum power consumption less than 1W
- Built-in Digital Diagnostic Monitoring (DDM)
- Power supply voltage 3.3V
- Compliant with RoHS environmental standards (lead-free)
- Class 1/1M specification product, compliant with IEC60825-1 requirements
- Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
- Meets EMI and ESD requirements
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | SFP-1G-CWDM-160 | Vendor Name | Fiberolink |
| Form Factor | SFP | Data Rate | 1.25Gbps |
| Wavelength | 1470~1610nm | Distance | 160km |
| Connector | LC Duplex | Cable Type | 单模SMF |
| Transmitter Type | DFB | Receiver Type | APD |
| TX Power | 0~5dBm | Receiver Sensitivity | < -30dBm |
| Power Consumption | ≤1W | Operation Temperature | 0~70°C |
| DDM | Support | EMC | Support |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA, CPRI, eCPRI | ||
Q、What is the difference between SFP optical modules and GBIC modules?
A、SFP optical modules are smaller in size, have lower power consumption, and support higher transmission rates. GBIC modules are larger, consume more power, and have gradually been phased out in favor of SFP optical modules.
Q、Do SFP optical modules support hot swapping?
A、Yes, SFP optical modules support hot swapping, meaning they can be inserted or removed while the system is in operation.
Q、How to determine if an SFP optical module is working properly?
A、The proper functioning of an SFP optical module can be verified by checking the device’s status indicators and conducting tests using an optical power meter.
Q、Is it possible to use SFP optical modules of different brands across equipment from various vendors?
A、In general, SFP optical modules of different brands can be used across diverse vendor equipment, but it’s essential to ensure compatibility and adhere to the vendor’s recommendations.
