PRODUCT DESCRIPTION
400GBASE-DR4 QSFP-DD transceiver, up to 500m over parallel single mode fiber (SMF). The 400G-DR4 can break out to 4 x 100G, and interop with 4 x 100G-DR QSFPs. Parallel SMF MPO-12 Angled Connector (APC)
PRODUCT FEATURES
- QSFP-DD MSA compliant
- Parallel 4 Optical Lanes
- IEEE802.3bs Specification compliant
- Up to 500m transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70oC
- 8×53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 12W
- MPO-12 connector
- RoHS compliant
APPLICATIONS EXAMPLES

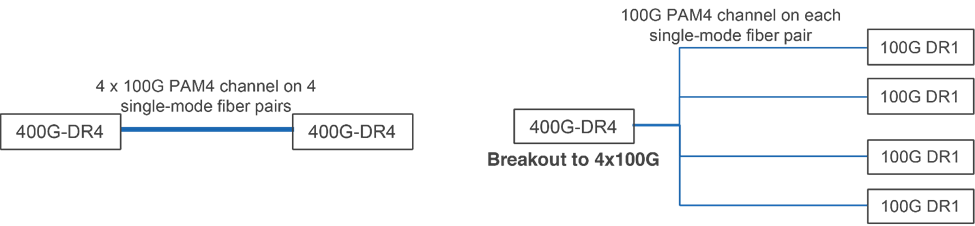

A cost optimized solution for up to 500m. Customers can use it for 400G to 400G connectivity as well as breakout 400G to 4x100G connectivity. Breakout option is often used for Leaf to ToR, in conjunction with 100G DR1 (100G DR1 is a new QSFP28 optics module used to plug into legacy 100G switches with NRZ electrical signals).
EN-QDD-LR4 Connectivity
The 400G-DR4 / XDR4 / PLR4 modules use a single row, angled (APC) MPO12 connector for use with parallel single mode fiber. Although a MPO12 cable can have up to 12 SMF fibers, only 8 out of the 12 fibers are used (4 for Tx and 4 for Rx). This is the same connector that is used on existing 100G and 40G QSFPs that use parallel SMF (e.g. 100G-PSM4, 40GPLR4 etc). An image, and drawing of an MPO12 connector are shown below.
Cabling required
EN-MTP8F-SM-FF-xxM is singlemode patch cable required for direct connectivity between QDD-DR4.

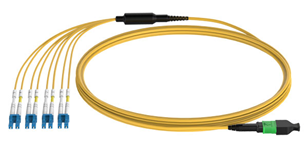

EN-MTP4LCxxSM is a Singlemode MTP to 4 Duplex LC breakout cable is required to connect to 4 x QSFP-100G-DRs (EN-QSFP28-DR1) to a single OSFP-400G-DR4 (or EN-QDD-DR4).
Walsun mainly focuses on the development and manufacture of 400G QSFP-DD,200G QSFP56,200G QSFP-DD,200G/100G CFP2,QSFP28 PAM4,100G QSFP28,50G QSFP28 PAM4,40G QSFP+,25G BIDI/CWDM/DWDM/MWDM/LWDM,10G SFP+/XFP DWDM/CWDM/BIDI,SFP DWDM/CWDM/BIDI series optical transceiver.The products are used in transmission,datacom,storage,energy and subsystem,etc.environmental applications.
